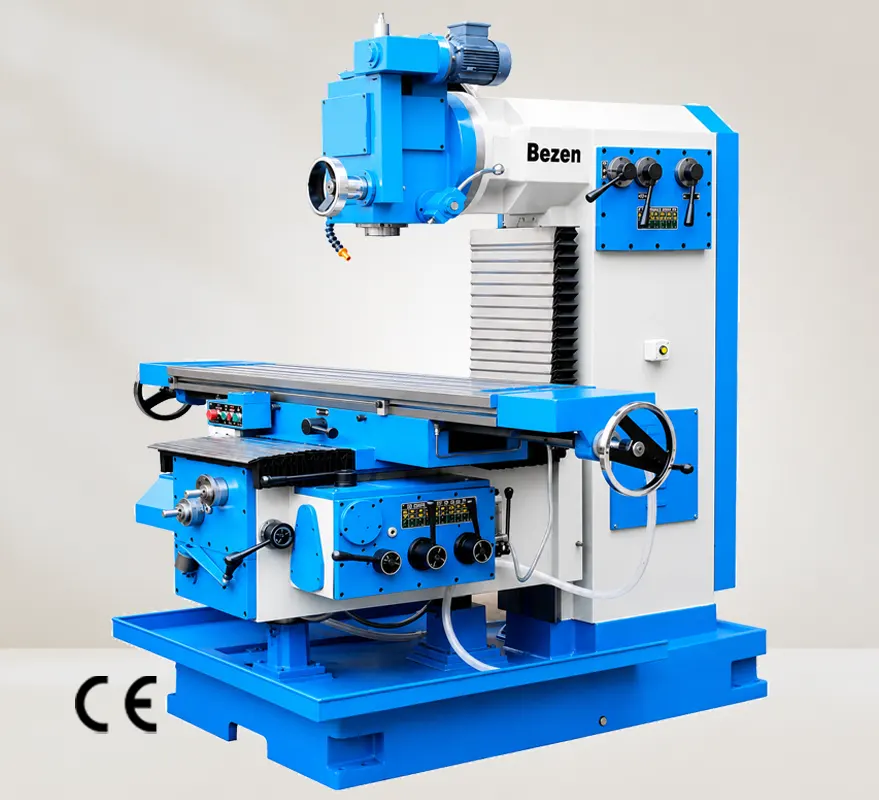

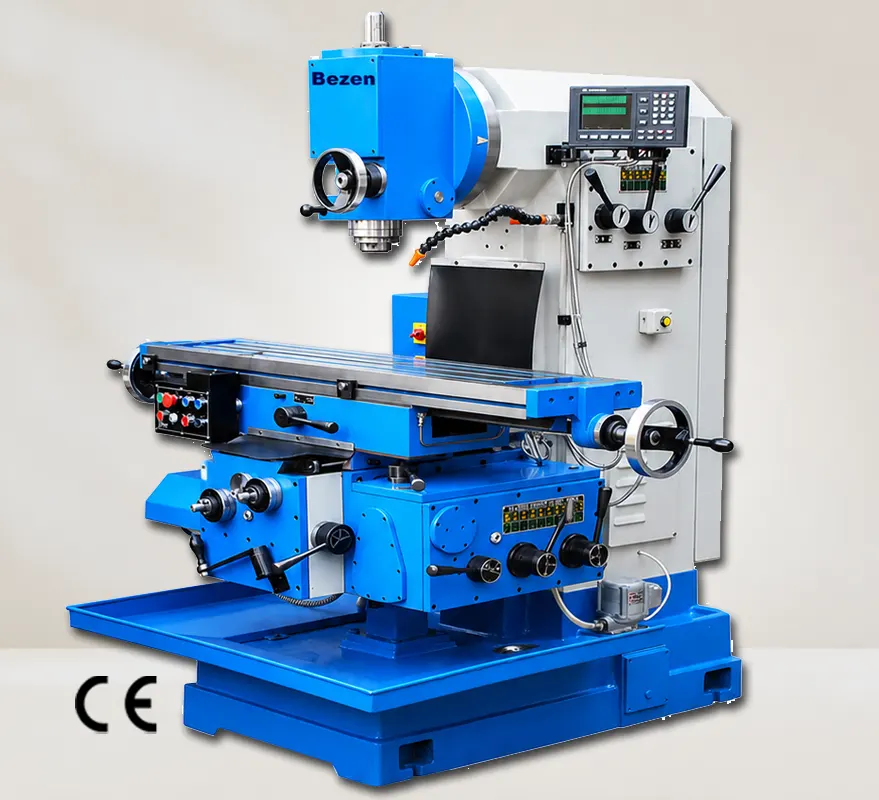

Vertical Milling Machines (All Geared)
Vertical Milling Machines are used to machine flat surfaces with the help of attached revolving milling cutter. Depending upon the job you can attach various Milling tools. Vertical Milling machines can be used to bore, to drill to cut gears, for slotting, circular milling dividing, and drilling of Metal Pieces to get desired shape. Vertical milling machine can also be used for cutting keyways, racks and gears and for fluting taps and reamers.
Technical Specifications For Vertical Milling Machines
|
Model
|
MAC2 V (AFR)E
|
MAC3 V (AFR)E
|
MAC4 V (AFR)E
|
MAC5 V (AFR)E
|
MAC6 V (AFR)E
|
MAC7 V (AFR)E
|
|
Table
|
||||||
|
Working Space (in mm)
|
1300 x 300
|
1400 x 330
|
1600 x 350
|
1800 x 400
|
2000 x 450
|
2300 X 500
|
|
No. & Width of T Nut
|
3.16
|
3.20 T NUT
|
3.20 T NUT
|
3.20 T NUT
|
3.20 T Nut
|
5.22 T Nut
|
|
Centre Distance Between T Slots
|
70
|
80
|
85
|
90
|
95
|
95
|
|
Longitudinal Travel By Power X (in mm)
|
700
|
800
|
1000
|
1200
|
1300
|
1400mm
|
|
Cross Traverse By Power Y (in mm)
|
215
|
260
|
340
|
380
|
450
|
500mm
|
|
Vertical Travel By Power Z (in mm)
|
400
|
460
|
550
|
600
|
650
|
700mm
|
|
Min. Distance From Left Hand Table End to Spindle Center
|
250
|
300
|
350
|
400
|
450
|
|
|
MILLING SPINDLE
|
||||||
|
No. of Speeds
|
12
|
12
|
12
|
12
|
12
|
12
|
|
Speed Range
|
40-1200
|
40-1200
|
40-1200
|
40-1200
|
40-1200
|
40-1200
|
|
Spindle Nose
|
ISO – 40
|
ISO – 40
|
ISO – 40
|
ISO – 50
|
ISO – 50
|
ISO-50
|
|
Min,/ Max. Distance, Centre Milling Spindle/ Lower Face of Milling Spindle to Table Top Surface
|
0-400
|
0-460
|
0-550
|
0-600
|
0-650
|
0-700
|
|
Distance Spindle Centre to Column
|
320
|
350
|
370
|
400
|
500
|
650
|
|
Face Vertical Movement of Quill
|
75
|
95
|
95
|
100
|
100
|
105
|
|
Swivel of Milling Head On Either Side
|
45o
|
45o
|
45o
|
45o
|
45o
|
45o
|
|
FEEDS
|
||||||
|
No. of Feeds
|
18
|
18
|
18
|
18
|
18
|
18
|
|
Feed Range : Long & Cross
|
23-420
|
23-420
|
23-420
|
23-420
|
23-420
|
23-420
|
|
Vertical
|
3-70
|
3-70
|
3-70
|
3-70
|
3-70
|
3-70
|
|
Rapid Traverse : Long Cross
|
1050
|
1050
|
1050
|
1050
|
1050
|
1050
|
|
Vertical
|
175
|
175
|
175
|
175
|
175
|
175
|
| POWER | ||||||
|
Main Motor
|
3 H.P
|
5 H.P
|
7.5 H.P
|
10 H.P
|
10 H.P.
|
15 H.P
|
|
Feed Motor
|
2 H.P
|
2 H.P
|
3 H.P
|
3 H.P
|
5 H.P.
|
5 H.P
|
|
Coolant Motor
|
0.1 H.P.
|
0.1 H.P.
|
0.1 H.P.
|
0.1 H.P.
|
0.1 H.P.
|
0.1 H.P
|
|
SHIPPING DIMENSIONS
|
||||||
|
Length x Width x Height
|
188 x 157 x 208
|
213 x 175 x 234
|
246 x 188 x 246
|
260 x 200 x 260
|
280 x 220 x 275
|
320 X 260 X 320
|
|
Net Weight K.gs.
|
2200
|
3200
|
3700
|
4500
|
5500
|
7000 KGS
|
|
Gross Weight
|
2600
|
3700
|
4300
|
5000
|
6300
|
8300 KGS
|
